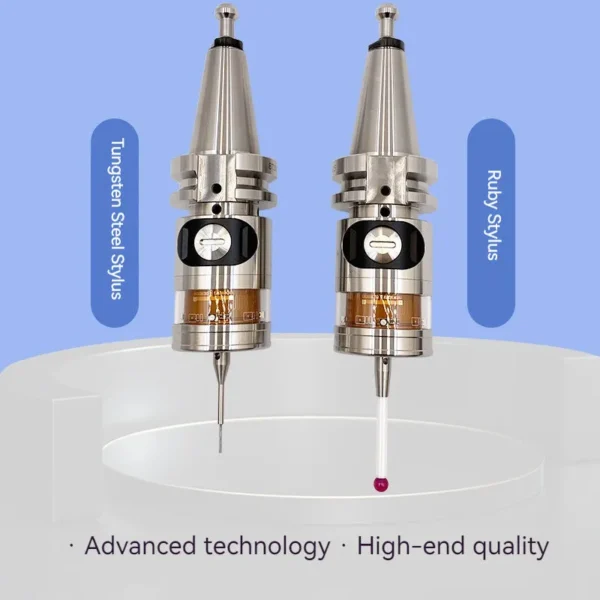

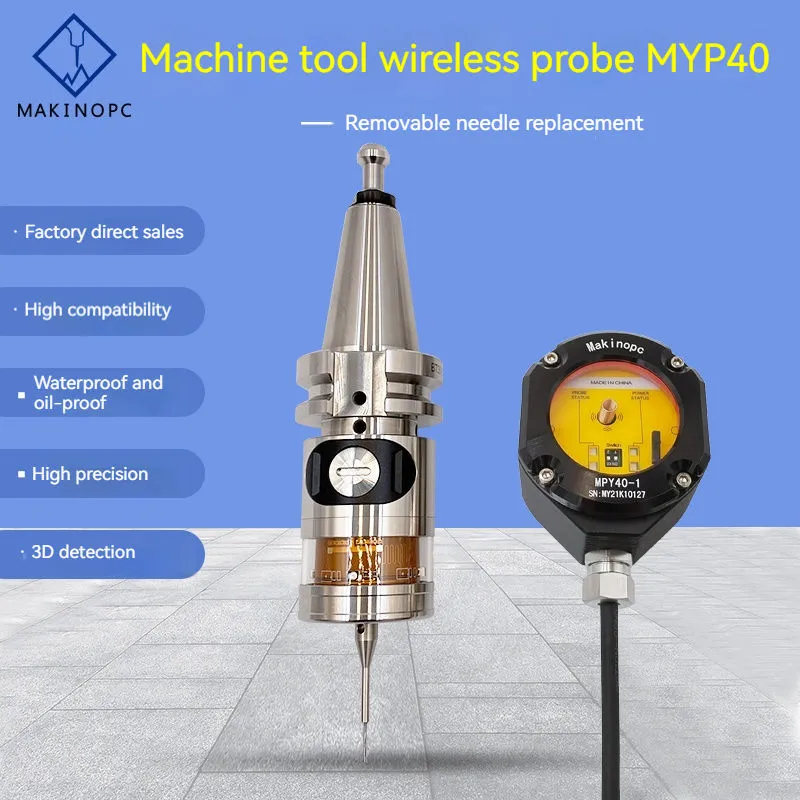

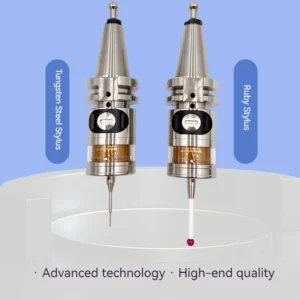

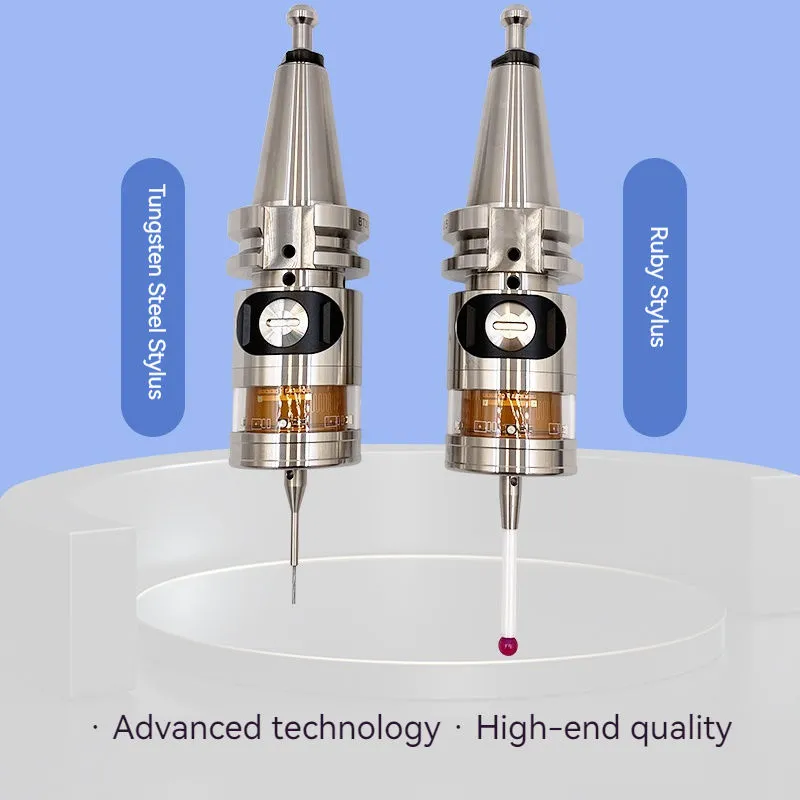

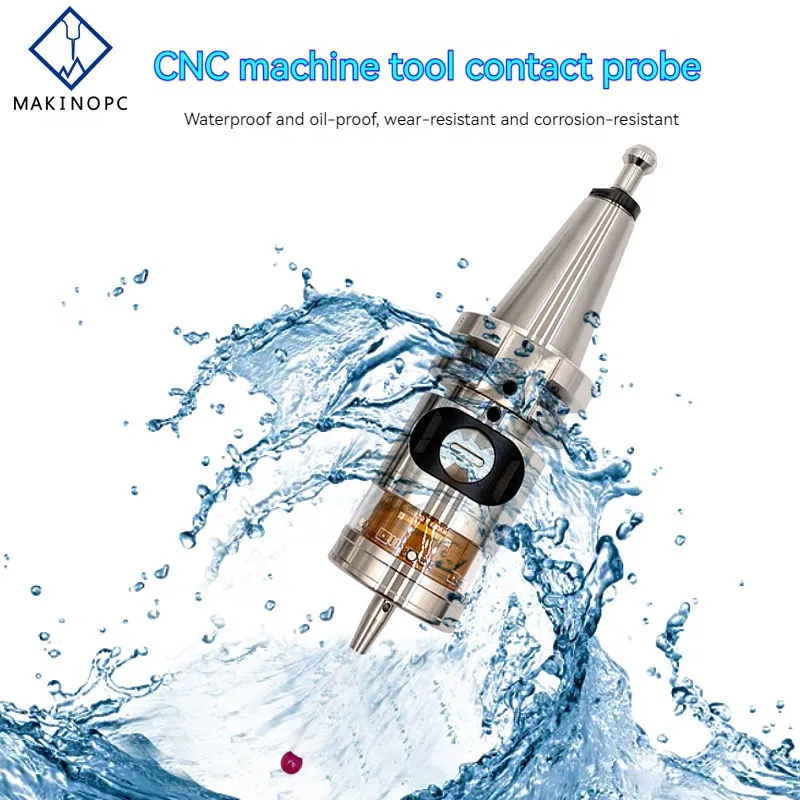

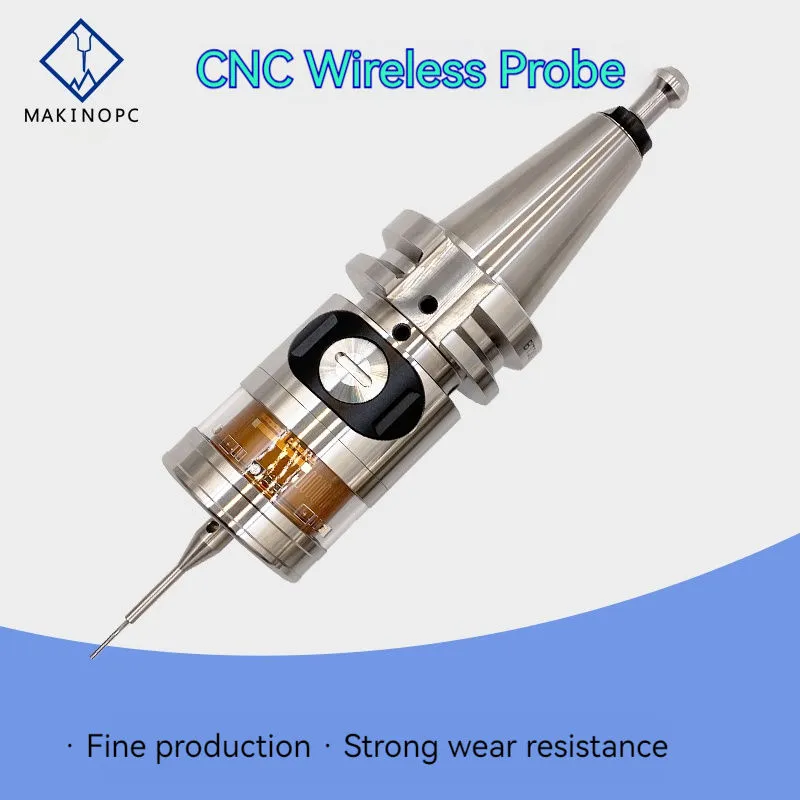

The MYP40 wireless probe uses radio signal transmission, and can be installed on most CNC machine tools such as CNC lathes, machining centers, and CNC grinding machines. In the machining cycle, the size and position of the tool or workpiece are directly measured without human intervention, and the offset of the workpiece or tool is automatically corrected, so that the same machine tool can process parts with higher precision. Greatly reduce the scrap rate and rework rate of parts, and 3C high-gloss chamfered products are more uniform and symmetrical.
|
Product name
|
Wireless probes for CNC machine tool
|
|
Product model
|
MYP40
|
|
Repeatability accuracy
|
0.001mm
|
|
Signal transmission mode
|
Radio Signal
|
|
Trigger direction
|
X, Y, -Z
|
|
power supply
|
14250 lithium battery (3.6V)
|
|
Body material
|
stainless steel
|
|
Probe outer diameter
|
41mm
|
|
Probe length
|
54mm
|
|
Measure speed
|
<500mm/min
|
|
Maximum pass
|
XY 15°, 24mm
|
|
Trigger force
|
adjustable
|
|
Trigger mode
|
Contact
|
|

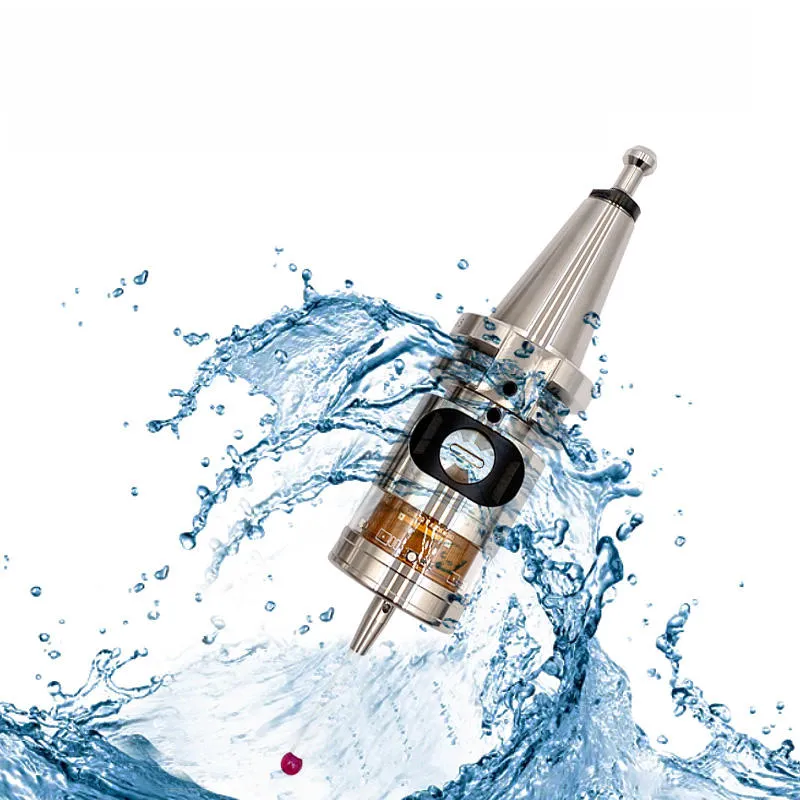

Ingress protection
|
IP68:EN60529
|
|
Net weight
|
1187g
|
|
Gross weight
|
1350g
|
|
Application industry
|
CNC machine tools, mold industry, mobile phone industry, aerospace and aviation electronics field, industrial machinery, rail
trains, etc. |
